| Place of Origin: | China Zhengzhou |
| Brand Name: | Mercury |
| Certification: | CE certification |
| Model Number: | LDM1025 LDM2025 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | Within 2 days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 2000 PCS per month |
| Color: | Blue |
|---|

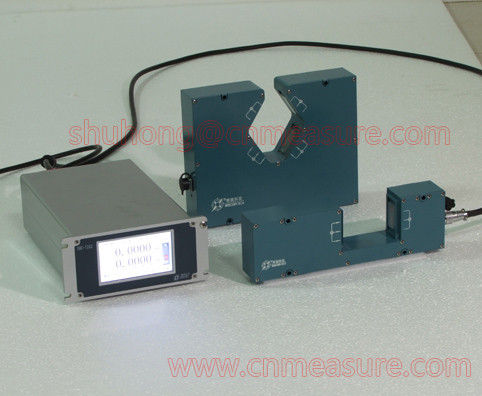

Compact laser diameter gauge for cable wire pipe LDM1025 LDM2025
LDM1025/LDM2025 series intelligent Laser scan micrometer. Compact laser diameter gauge.
| Type | Single Axis laser diameter gauge |
Dual Axis laser diameter gauge |
| Measuring head | LDM1025 | LDM2025 |
| Controller | DDC-7202 | DDC-7202 |
| Gate Size | 25mm | 25mm |
| Measuring Range | 0.1 - 20mm | 0.1 - 20mm |
| Min Measured Size | 0.1mm | 0.1mm |
| Laser Type |
Visual Red Semi-Conductorlaser 660mm |
Visual Red Semi-Conductorlaser 660mm |
| Accuracy | ±0.5μm | ±0.5μm |
| Repeatability | 0.15μm | 0.15μm |
| Data Collection speed | 1400 Times/Sec | 800 Times/Sec |
| Max Scan speed | 82m/s | 82m/s |
| Temperature | -10 - 50℃ | -10 - 50℃ |
| Humidity | 35% - 85% | 35% - 85% |
| Net Weight | 1.4Kg | 3.0Kg |
| Dimension | 263.5×80×45mm | 187×240×50mm |
| Display Type | 4.3 Inch Touch Screen | 4.3 Inch Touch Screen |
| Units of Measurement | mm or inch | |
| Adjustable Resolution | 0.0001mm - 0.1mm 0.00001 inch - 0.01 inch | |
| Alarm Relay output | 2 NO or NC Terminal | |
| Analog Output | +TOL,-Tol Output PIC Output Control Voltage: 16 bit ± 10V DC Current: 0 - 10 mA ( for Speed Control ) |
|
| Communication Output | RS485, Ethernet | |
| Output port | 2 Ways OC Output | |
| Controller Dimension | 190 × 86 × 270mm | |
| Installation Size | 164 × 82mm | |
| Panel Installation Size | 180 × 66mm | |
| Features | 1. Connect up to four sets of single-axis laser diameter gauge or 2-axis laser diameter gauge or two laser-CCD gauge. 2. Display functions: multi-axis measurements. +Tol, -Tol value,etc. |
|

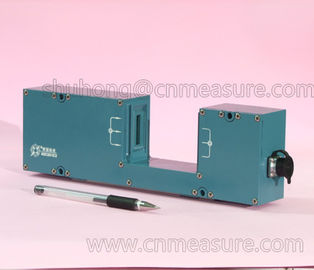

Photo 1. LDM1025 Single axis measuring head

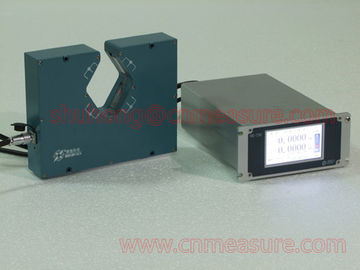

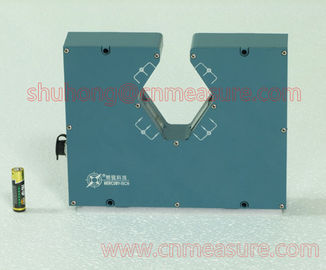

Photo 2. LDM2025 Dual axis Measuring head
Photo 4. DDC-7202 display controller (4.3 Inch Touch Screen)
