Dual axis laser diameter gauge for measuring pipe diameter up to 100mm. laser diameter measuring countrol device is the high-accuracy installment that uses the laser scan to carry on the no-contacts on-line measurement. It (namely X axis and Y axis) simultaneously measure the diameter in two directions.
It is applicable to measure and control the diameter of metal wires, glass, pipes, wire and cable, etc. It is overcomes the shortcomming of bi-directional measurement. The display unit can simultaneously show the diameter mean value and roundness of wire and pipe.

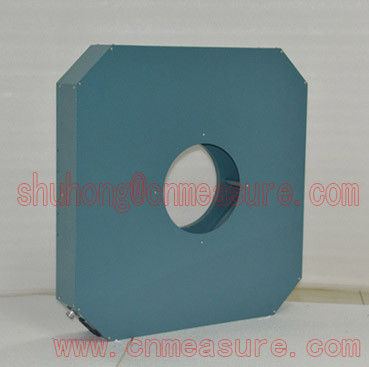

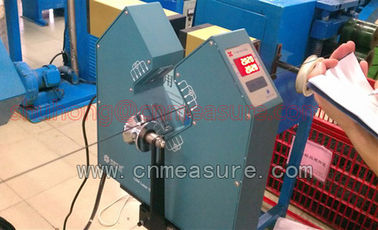

Photo 1 : Dual axis LDM100BXY measuring head

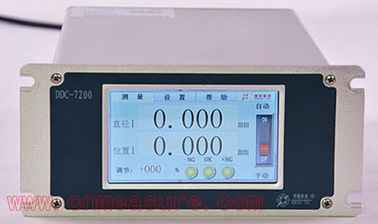

Photo 2 : DDC-7 Touch screen display controllerers
1. Technical paramet
| Model | Measuring Range | Resolution | Accuracy |
| LDM-25XY | 0.1 - 20mm | 0.001 | 0.001mm |
| LDM-50XY | 0.2 - 45mm | 0.001 | 0.002mm |
| LDM-60XY | 0.2 - 55mm | 0.001 | 0.002mm |
| LDM-100BXY | 0.2 - 95mm | 0.001 | 0.002mm |
2. The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V plus/minus 15% 50 - 60Hz
Operating temperature: -10 ~ 40 Degrees Celsius
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W
Dimensions: LDM25XY/LDM50XY Gauge head: 400mm * 400mm * 80mm
Support: 350mm * 200mm * (700-1000)mm
Height of central measuring position: 900-1200mm
3. Characteristics
1). Can be connected PLC, industrial computer.
2). RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.
3). Can be equipped remote controller DDC-3, DDC-5,DDC-7, on the extruder and automatic feedback control to control the tolerance, improve product quality, reducing consumption.
4. Display Controller (Model:DDC-3, DDC-5, DDC-7)
1). It be used to remote display and control.
2). Applicable to DC motors, VVVF motor.
3). The controller can control the speed of extruder or the tractor according to the diameter tolerance.
4). Can simultaneously measure the outside diameter, roundness, runout, including oval diameter. It can be used for shaft testing, the detection of rubber roller, honeycomb ceramic detection.
Signal distance: more than 500m
Output voltage: plus/minus 10V
With RS485 It can connect to PLC industry controlling computer
The PROFIBUS-DP or MODBUS
Can be selected.
