| Place of Origin: | China Zhengzhou |
| Brand Name: | Mercury |
| Certification: | CE certification |
| Model Number: | LDM-25 LDM-50 LDM-100B LDM-150 LDM-210 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | Within 2 days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 2000 PCS per month |
| Color: | Blue |
|---|

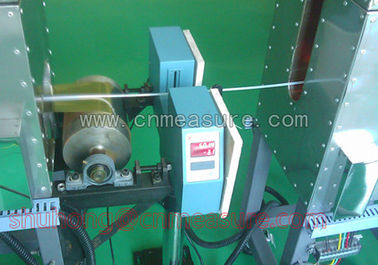

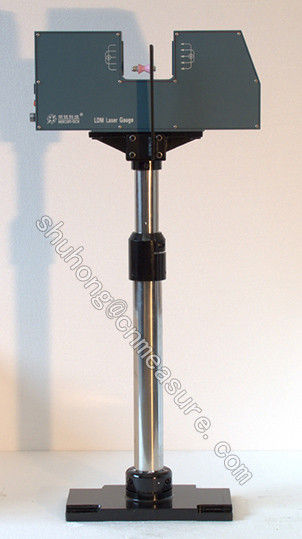

Cable Wire Single Axis Laser diameter gauge is the high-accuracy installment that uses the laser scan to carry on the no-contacts on-line measurement. It is mainly used in measuring of outer diameter and adjusting the extruder screw or traction speed, to control the outside diameter. It is applicable to measure and control the diameter of metal wires, glass, pipes, wire and cable, etc.
It can also be applied to the outer diameter of workpiece and size measurements.
1. Technical parameters
| Model | LDM-25 | LDM-50 | LDM-100 | LDM-150 | LDM-210 | LDM-380 | |||||
| Measuring Range | 0.2-20mm | 0.2-45mm | 0.2-95mm | 0.2-145mm | 0.2-205mm | 0.2-375mm | |||||
| Min Size | 0.2mm | 0.2mm | 0.2mm | 0.2mm | 0.2mm | 0.2mm | |||||
| Max Size | 20mm | 45mm | 95mm | 145mm | 205mm | 375mm | |||||
| Accuracy | ±0.001 | ±0.002 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | |||||
| Resolution | 0.001mm | 0.001mm | 0.001mm | 0.001mm | 0.001mm | 0.001mm | |||||

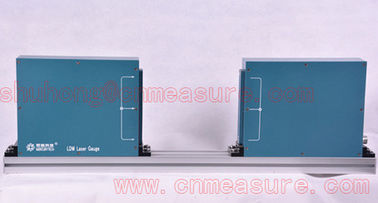

| Dimension | 48.5x20x8.5cm | 48.5x20x8.5cm | 62x25x6cm | 92x29x9.5cm | 121x36x8.5cm | 45x50x8.5cm(x2) | |||||
| Units of Measurement | mm | mm | mm | mm | mm | mm | |||||
| Power | ~220V±15%, 50-60HZ | ||||||||||
| Temperature | -10~40℃ | ||||||||||
| Humidity | <85% RH | ||||||||||
|
Gauge Head Serial I/O |
Standard: RS485 Options:RS232 / USB / Profibus | ||||||||||
| Presets | Diameter, +Tol,-Tol, Alarm Setting | ||||||||||
| Transparent Measurement | Option | Option | Option | Option | Option | Option | |||||
| Control Output | |||||||||||
| Serial I/O | RS485 | ||||||||||
| Analogues Output | 16 bit ±10V DC Output | ||||||||||
| Relay Output | 2 Volt Free (Status, Upper Tolerance, Lower Tolerance) | ||||||||||
2. The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V ± 15% 50 - 60Hz
Operating temperature: -10 ~ 40 °C
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W
3. The Device with the following Characteristics
i. Can be connected PLC, industrial computer.
ii. RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.
iii. Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic
feedback control to control the tolerance, improve product quality, reducing
consumption.
4. Display Controller (Model: DDC-5)
i. It be used to remote display and control.
ii. Applicable to DC motors, VVVF motor.
iii.The controller can control the speed of extruder or the tractor according to the diameter tolerance.
Signal distance: More than 500m
Output voltage: ±10V
With RS485 It can connect to PLC industry controlling computer
The PROFIBUS-DP or MODBUS
Can be selected.
External dimensions:164mm×85mm×280mm (Model:DDC-3)
100mm×100mm×120mm (Model:DDC-5)
Installation hole size: 152mm×76mm (Model:DDC-3)
90mm×90mm (Model:DDC-5)
CE Certifications
Laser Diameter Gauge Features
1. non-contact laser diameter measurement, high speed, high accuracy and good repeatability.
2. Real time outside diameter and roundness display, improve quality control and production efficiency, reduce the wast e of materials.
3. Various digital and analog control signal functions, to achieve fully automated production.
4. Various preset functions,nominal value, the upper and lower tolerance, alarm control presets, easy to operate.
5. Standard data port connection ready,compatible software for data analysis development convenience.

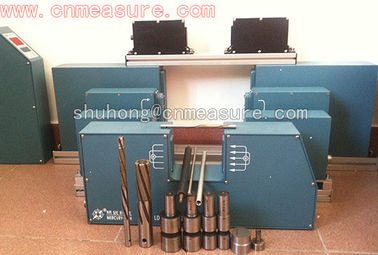

LDM Series Gauge is the classic Mercury-Tech product series, with decades of technological innovation and more than 1,000 customers use these products, high accuracy, reliable product. Currently it is the wire, cable, pipe measurement’s best choice. It develops 10 models in the series .
If you have any questions, please connect to us:
E-mail: shuhongma@cnmeasuring.com
Website: www.cnmeasure.com
TEL: +86-135 9803 3248
Address: NO.36 Hongsong Road, High-tech Zone, Zhengzhou, CHINA,
Manufacturer: Zhengzhou Mercury-tech Co.,Ltd.
