| Place of Origin: | China Zhengzhou |
| Brand Name: | Mercury |
| Certification: | CE |
| Model Number: | LDM-25 LDM-50 LDM-100B LDM-150 LDM-210 LDM-380 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | Within 2 days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 2000 PCS per month |
| Color: | Blue |
|---|
Laser pipe diameter measuring tool LDM-25 LDM-50 LDM-100B LDM-150 LDM-210 LDM-380
| Working life | 35000 Hours | Voltage | AC 220-230V |
| Size | 485x20x85(mm) | Application | Cable,Wire,Tube,
Conductor, Roller
|
| Measuring Range | 0.2-20mm, 0.2-50mm | Certification | CE |
| Power | 30w | Warranty | 1 years |
| Model | LDM-25/50 | Function | Diameter Display & Control, Alarm |
| Accuracy | 0.001mm | MOQ | 1 Piece |
| Resolution | 0.001 | Signal Output | Yes |
| Gender | Women, Girls | Port | Zhengzhou/Shanghai |
1. Packing includes laser gauge, Controller Display DDC-6 and Stand
2. Export Packing: Paper
3.Delivery Time: Less than 7 working days
4. non-contact laser diameter measurement, high speed, high accuracy and good repeatability.
5. Real time outside diameter and roundness display, improve quality control and production efficiency, reduce the waste of materials.
6. Various digital and analog control signal functions, to achieve fully automated production.
7. Various preset functions,nominal value, the upper and lower tolerance, alarm control presets, easy to operate.
8. Standard data port connection ready,compatible software for data analysis development convenience.

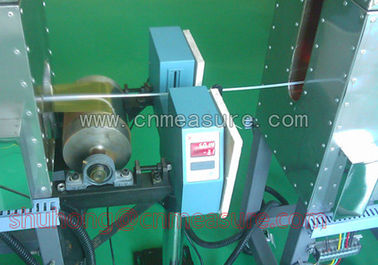

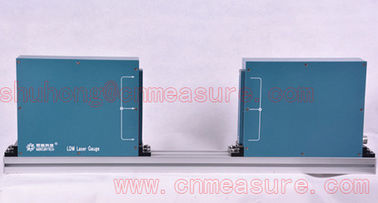

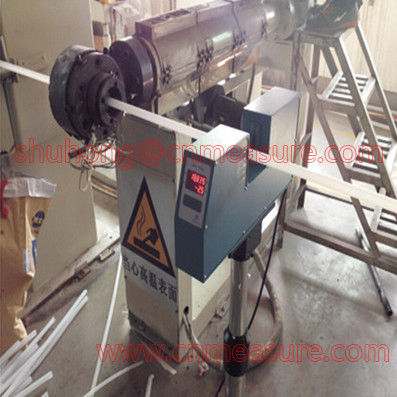

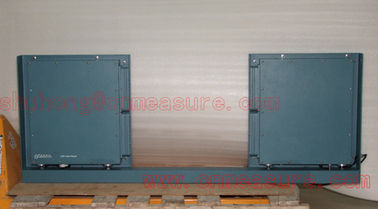

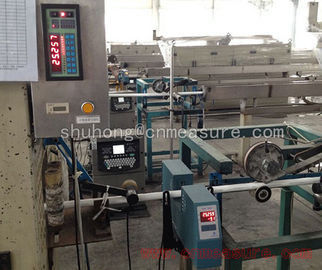

Detailed Images
| Model | LDM-25 | LDM-50 | LDM-100 | LDM-150 | LDM-210 | LDM-380 | |||||
| Measuring Range | 0.2-20mm | 0.2-45mm | 0.2-95mm | 0.2-145mm | 0.2-205mm | 0.2-375mm | |||||
| Min Size | 0.2mm | 0.2mm | 0.2mm | 0.2mm | 0.2mm | 0.2mm | |||||
| Max Size | 20mm | 45mm | 95mm | 145mm | 205mm | 375mm | |||||
| Accuracy | ±0.001 | ±0.002 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | |||||
| Resolution | 0.001mm | 0.001mm | 0.001mm | 0.001mm | 0.001mm | 0.001mm | |||||
| Dimension | 48.5x20x8.5cm | 48.5x20x8.5cm | 62x25x6cm | 92x29x9.5cm | 121x36x8.5cm | 45x50x8.5cm(x2) | |||||
| Units of Measurement | mm | mm | mm | mm | mm | mm | |||||
| Power | ~220V±15%, 50-60HZ | ||||||||||
| Temperature | -10~40℃ | ||||||||||
| Humidity | <85% RH | ||||||||||
|
Gauge Head Serial I/O |
Standard: RS485 Options:RS232 / USB / Profibus | ||||||||||
| Presets | Diameter, +Tol,-Tol, Alarm Setting | ||||||||||
| Transparent Measurement | Option | Option | Option | Option | Option | Option | |||||
| Control Output | |||||||||||
| Serial I/O | RS485 | ||||||||||
| Analogues Output | 16 bit ±10V DC Output | ||||||||||
| Relay Output |
2 Volt Free (Status, Upper Tolerance, Lower Tolerance) |
||||||||||
Our factory
LDM Series Gauge is the classic Mercury-Tech product series, with decades of technological innovation and more than 1,000 customers use these products, high accuracy, reliable product. Currently it is the wire, cable, pipe measurement’s best choice. It develops 10 models in the series .
If you have any questions, please connect to us:
E-mail: shuhongma@cnmeasuring.com
Website: www.cnmeasure.com
TEL: +86-135 9803 3248
Address: NO.36 Hongsong Road, High-tech Zone, Zhengzhou, CHINA,
Manufacturer: Zhengzhou Mercury-tech Co.,Ltd.
