Two-dimensional laser diameter measuring equipment for pipe

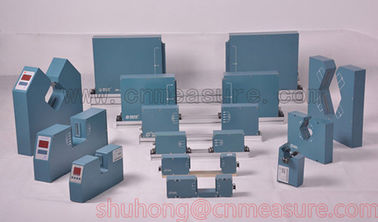

Two-dimensional laser diameter measuring equipment for pipe LDM25XY LDM50XY LDM60XY

Specifications
1). Two-dimensional laser diameter measuring equipment for pipe
2). Accuracy: 0.001
3). Measurement & control
4). For pipe, Transparent tube,transparent line.
5). Model LDM-25XY. diameter measuring range is from 0.1-20mm
      Model LDM-50XY. diameter measuring range is from 0.2-45mm

      Model LDM-60XY. diameter measuring range is from 0.2-55mm

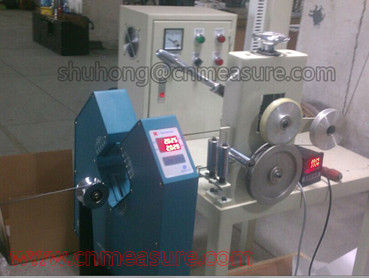

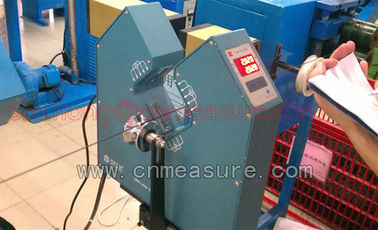

Two-dimensional laser diameter measuring equipment for pipe is the high-accuracy installment that uses the laser scan to carry on the no-contacts on-line measurement. It (namely X axis and Y axis) simultaneously measure the diameter in two directions.
It is applicable to measure and control the diameter of metal wires, glass, pipes, wire and cable, etc. It is overcomes the shortcomming of bi-directional measurement. The display unit can simultaneously show the diameter mean value and roundness of wire and pipe.

1. Technical parameters

Model               Measuring Range           Resolution                 Accuracy
LDM-25XY            0.1-20mm                      0.001                     0.001mm
LDM-50XY            0.2-45mm                      0.001                     0.002mm

LDM-60XY            0.2-55mm                      0.001                     0.002mm

2. The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V plus/minus 15% 50 - 60Hz
Operating temperature: -10 ~ 40 Degrees Celsius
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W
Dimensions: LDM25XY/LDM50XY Gauge head: 400mm * 400mm * 80mm

                       LDM60XY Gauge head: 380mm * 380mm * 60mm

3. Display Controller (Model:DDC-5)
1). It be used to remote display and control.
2). Applicable to DC motors, VVVF motor.
3). The controller can control the speed of extruder or the tractor according to the diameter tolerance.
4). Can simultaneously measure the outside diameter.
Signal distance: more than 500m
Output voltage: plus/minus 10V
With RS485 It can connect to PLC industry controlling computer
The PROFIBUS-DP or MODBUS
Can be selected.
External dimensions: 100mm * 100mm * 120mm (Model:DDC-5)
Installation hole size: 90mm * 90mm (Model: DDC-5)

Min.Order Quantity: 1 Piece/Pieces
Payment Terms: T/T, Paypal
Packaging Detail: Carton
Delivery Detail: According to order quantity. Usually, within 3 days

CE Certifications
