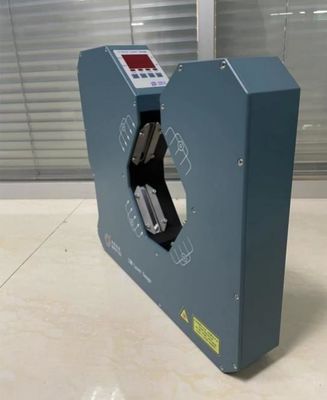

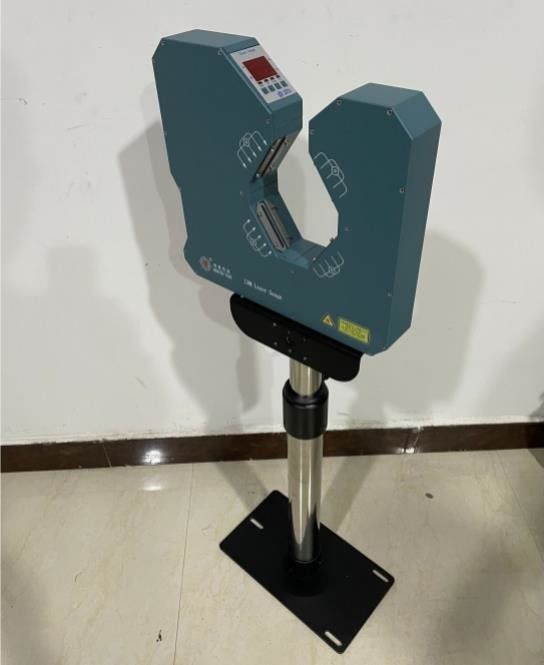

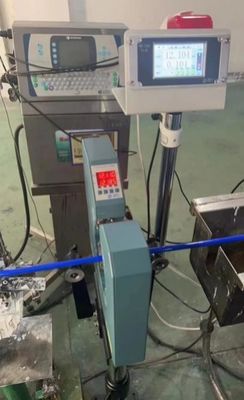

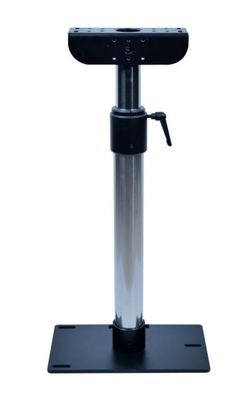

LDM-2050 dual axis laser diameter gauge
Product Introduction
The LDM-2050 is a new type of dual-axis diameter gauge developed by Mingrui Company. It has been improved in appearance, reduced in size and weight, and enhanced in measurement stability and environmental adaptability compared to the old LDM-50XY model. The product is robust and durable, and easy to maintain. It is a high-precision non-contact online measurement device that uses laser scanning technology to measure the outer diameter simultaneously in two directions (X-axis and Y-axis). It is suitable for measuring and controlling the outer diameter of metal wire materials, glass tubes, rubber hoses, wires and cables, etc. The bidirectional simultaneous measurement and average value display overcome the drawback of unidirectional diameter gauges that cannot measure non-circular objects. It can simultaneously display the outer diameter and out-of-roundness of wires and tubes.
Product Parameters:
Product Name | LDM-2050 dual-axis Laser Diameter Gauge |
Product Model | LDM-2050 |
Applicable Measuring Range | 0.2 - 45mm |
Measuring Accuracy | ±0.002mm |
Measuring Method: Laser Scanning Method
Laser: Red Visible Semiconductor Laser
Laser Output Power: < 2mW
Working Voltage: ~220V ± 15% 50 - 60Hz
Operating Temperature: -10 - 40℃
Environmental Humidity: < 85% RH
Working Mode: Continuous
Power Consumption: < 30W
External Dimensions: 366*335*60mm
Repeatability: 0.5um
Display Refresh Rate: 50, 25, 13, 6, 3, 1 times/second (Selectable in display settings)
Alarm Function: Two groups of relay outputs, when the measurement data exceeds the tolerance, the alarm red light will be on and an audible and visual alarm can be connected.
Control Function: Achieves online control function, can control extrusion or traction.
Data Output Interface: RS485
True Sampling Rate: 800 times/S
Product Features:
1. High-precision measurement: With a dual-axis design, it can simultaneously measure the diameters of an object in two perpendicular directions, displaying the outer diameter on the X-axis, the outer diameter on the Y-axis, or the average value error, etc. This ensures the accuracy of the measurement results.
2. High stability: The equipment casing and internal optical components adopt a unique design solution, combined with precise assembly and manufacturing techniques, which have strong anti-interference ability and ensure long-term stable operation.
3. Non-contact measurement: Utilizing laser measurement technology, it avoids causing damage to the object being measured and is suitable for precise, fragile, and soft materials.

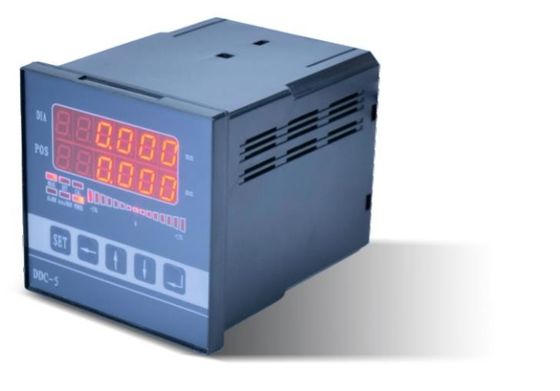

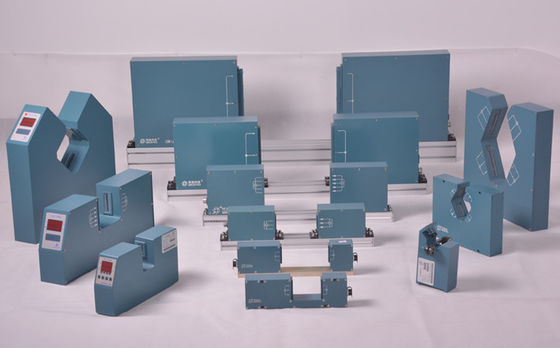

4. Real-time Monitoring: The 2050 features dual-screen display. The caliper has its own display for viewing in the measurement area. Additionally, it can be connected to a display controller, which can be installed in an embedded manner in a cabinet or at the operator's console for viewing and setting various parameters. It can display measurement data in real time and can also add data storage and analysis functions, facilitating quality control.
5. Easy integration: Supports multiple data output methods and can be integrated with other automated equipment or production lines to achieve fully automated measurement and control.
6. Signal Feedback: The PID analog control signal function measures the outer diameter and adjusts the screw speed of the extruder or the speed of the traction machine to achieve the purpose of automatic control of the outer diameter.
