| Place of Origin: | China Zhengzhou |
| Brand Name: | Mercury |
| Model Number: | CCDL-03L |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD |
| Packaging Details: | Wooden 55cm*55cm*25cm |
| Delivery Time: | Within 2 days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 2000 PCS per month |
| Color: | Black |
|---|

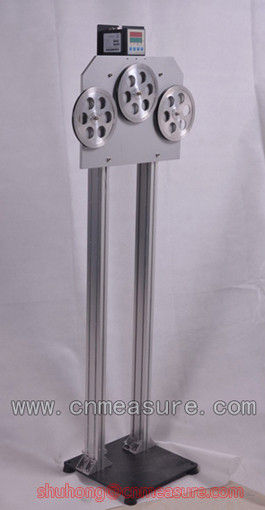

High precision Wheel length counter. Threadlet, Optical fiber length measuring device CCDL-03L
Product Introduction
CCDL Series High Precision Wheel Meters will provide the industry's most accurate measurement.
This wire length counter will reduce your cost of production.
Features
1.Designed for wire and cable pipe meter counting.

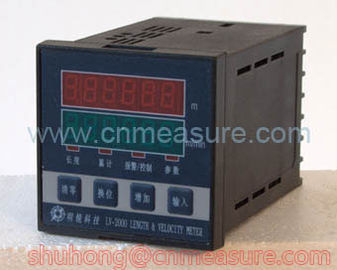

2.LED display for easy reading and display length and line speed.
3. Electronic controllers provide multiple setting of relay output, easy to do automated control.
4.High accuracy: +/- 0.1%
5.Positive direction or reverse two-way adjustable counting
6.Data protection when power down
7. Height stand can be adjusted to adapt to different heights of the production line.
8. Easy to install and long-term use.
| Model | CCDL-03L |
| Measuring Range | 0.1-3mm |
| Max Counting Length | 99999.9 |
| Max Total Length | 999999 |
| Dimension | 500mm x 300mm x 1250mm |
| Accuracy | +/- 0.1% |
| Max Measuring Speed | 400 m/min |
| Relay Output | 2 |
| Alarm Output | Yes |
| Display digits | 6 digits |
| Length Measuring Unit | meter |
| Pressure Measuring Unit | No |
| Digital Pressure Control | No |
| Calibration | Yes |
| Decimal Point Shift | Yes |
| Length Preset | Yes |
| Ahead of Preset Output | Yes |
| Control Preset | Yes |
| Emergent Data Protection | Yes |
| Two-Direction Counting | Yes |
| Ft Measuring Unit | Option |
| RS485 | Option |
| Power Consumption | <10W |
| Voltage | 220V 50/60HZ |
