| Place of Origin: | China Zhengzhou |
| Brand Name: | Mercury |
| Model Number: | CCDD-150L |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD |
| Packaging Details: | Wooden 65cm*55cm*44cm |
| Delivery Time: | Within 2 days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 2000 PCS per month |
| Color: | Black |
|---|
Length measuring device model CCDD-150L. Length measurement, Wire Cable length meter counter gauge.

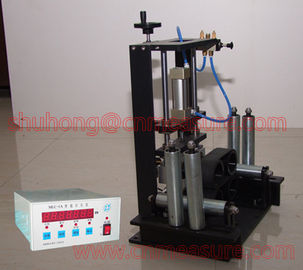

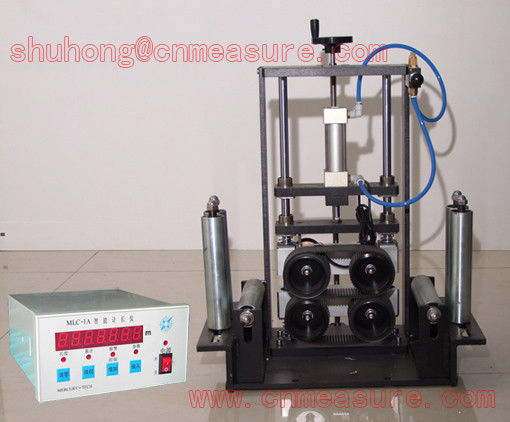

The model CCDD-150L can be opened and closed by the cylinder, and to adjust cylinder air pressure to control the compaction of the measured object, to achieve the purpose of accurate measurement.
Technical parameters:
Operating voltage: ~ 220V plus/minus 15% 50 - 60Hz
Power consumption: <10W
Operating temperature: -10 ~ 40 Degrees Celsius
Compress air: 0.3Mpa ~ 0.8Mpa.
The model CCDD-150L is used for measuring the length of cable ( external diameter between 1mm -150mm )
Accuracy: 0.1%
External dimensions: 400mm * 250mm * 500mm (Model CCDD-150L)
Specifications

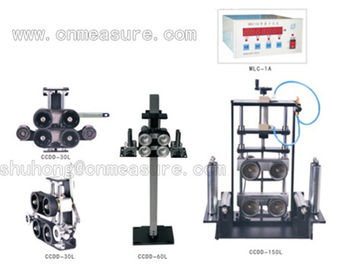

| Model | CCDD-30L | CCDD-60L | CCDD-150L |
| Measuring Range | 3-30mm | 3-50mm | 3-150mm |
| Max Counting Length | 9999999 | 999999 | 999999 |
| Max Total Length | 99999.99 | 99999.99 | 99999.99 |
| Accuracy | +/- 0.1% | +/- 0.1% | +/- 0.1% |
| Dimension | 410x180x1200mm | 430x225x1200mm | 490x370x590mm |
| Total Net Weight | 17KG | 22KG | 55KG |
| Max Measuring Speed | 400 m/min | 400 m/min | 400 m/min |
| Relay Output | 2 | 2 | 2 |
| Alarm Output | Yes | Yes | Yes |
| Display digits | 7 digit | 7 digit | 7 digit |
| Length Measuring Unit | Meter | Meter | Meter |
| Calibration | Yes | Yes | Yes |
| Decimal Point Shift | Yes | Yes | Yes |
| Length Preset | Yes | Yes | Yes |
| Ahead of Preset Output | Yes | Yes | Yes |
| Control Preset | Yes | Yes | Yes |
| Emergent Data Protection | Yes | Yes | Yes |
| Two-Direction Counting | Yes | Yes | Yes |
| Ft Measuring Unit | Option | Option | Option |
| RS485 | Option | Option | Option |
| Power Consumption | <10W | <10W | <10W |
| Voltage |
220V |
220V |
220V |

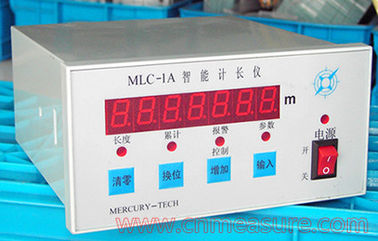

Electronic Counter
Maximum count: 10Km
Measurable length: 0-99999.99m
Cumulative length: 0-9999999m
Calibrate measuring precision.
Protection data when Power Down.
Pre-setting the length.
Pre-setting alarm length.
External dimensions: 160mm * 80mm * 170mm (Electronic Counter).
Installation hole size: 152mm * 76mm.
