| Place of Origin: | China, Zhengzhou. |
| Brand Name: | Mercury |
| Certification: | CE certificate |
| Model Number: | LDM-25XY LDM-50XY LDM-60XY |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD |
| Packaging Details: | Carton 71cm*50cm*28cm |
| Delivery Time: | within 2 days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 2000 PCS per month |
| Color: | Blue |
|---|

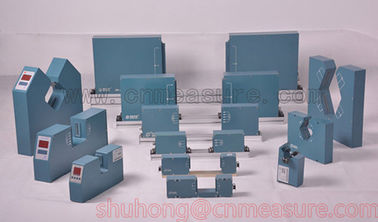

Dual Axis Laser Diameter Micrometer LDM-25XY LDM-50XY LDM60XY.
LDM25XY LDM-50XY LDM-60XY Dual Axis laser diameter micrometer, can Online measurement and control.

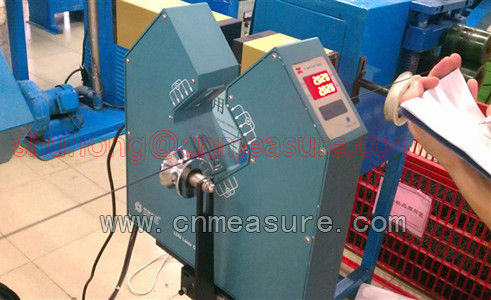

Dual Axis laser diameter micrometer is the high-accuracy installment that uses the laser scan to carry
is the high-accuracy survey installment that uses the laser scan to carry on the no-contacts on-line survey. It (namely X axis and Y axis) simultaneously measure the diameter in two directions.
Applicable to metal wires, glass, pipes, wire and cable, etc. The diameter of the measurement and control. Bi-directional measurement, the average shows that can simultaneously show the wire, pipe diameter, roundness.
1. Technical parameters
| Model | Measuring range | Resolution | Accuracy |
| LDM-25XY | 0.1-20mm | 0.001mm | 0.001mm |
| LDM-50XY | 0.2-45mm | 0.001mm | 0.002mm |
| LDM-60XY | 0.2-55mm | 0.001mm | 0.002mm |
2. The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V plus/minus 15% 50 - 60Hz
Operating temperature: -10〜40 Degrees Celsius
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W
Dimensions: LDM25XY/LDM50XY Gauge head: 400mm * 400mm * 80mm
Stand: 350mm * 200mm * (700-1000)mm
Height of central measuring position: 900-1200mm
3. The Device with the following Characteristics
1. Can be connected PLC, industrial computer.
2. RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.
3. Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic feedback control to control the tolerance, improve product quality, reducing consumption.
External dimensions:164mm * 85mm * 280mm (Model:DDC-3)
100mm *100mm *120mm (Model:DDC-5)
Installation hole size: 152mm * 76mm (Model: DDC-3)
90mm * 90mm (Model: DDC-5)
CE Certifications
