| Place of Origin: | China, Zhengzhou. |
| Brand Name: | Mercury |
| Certification: | CE certification |
| Model Number: | CCDD-60L CCDD-30L |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD 850 - 980 PCS |
| Packaging Details: | Carton 63cm*33cm*33cm |
| Delivery Time: | Within 2 days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 2000 PCS per month |
| Color: | Blue |
|---|
Cable length meter counter (Model CCDD-60L. Model CCDD-30L)

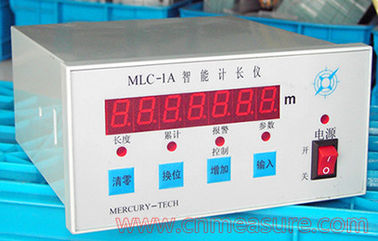

CCDD series belt type counter will provide you with the industry's most accurate measurement. reduce your production costs. Electronic controller unit can do preset in length, alarm time, and a variety of customized signal output.

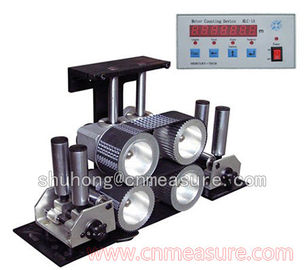

Photo 1: CCDD-60L (without Support / Stand )

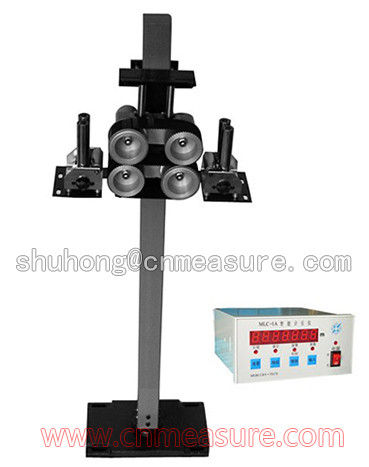

Photo 2: CCDD-60L (with Support / Stand )
Features
1. Designed for wire and cable pipe meter and design process, high precision.
2. LED display is clear and easy reading.
3. Electronic controller unit provides multiple sets of relay output, easy to manage the production automatically .
4. High accuracy,up to +/- 0.1%
5. Positive or reverse two-way adjustable counting
6. Emergency power down data protection
7. CCDD-150L is specially designed with air cylinder unit.
8. Counter support height can be adjusted to adapt to different heights of the production line.
9. The position of decimal point on display is adjustable..
10.Standard Belt,easy to find replacement belt in market.

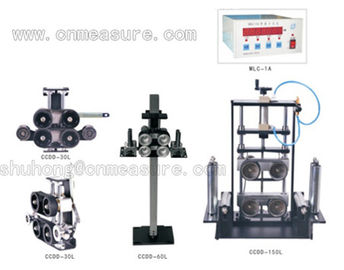

Photo 3: CCDD-30L (without Support / Stand )

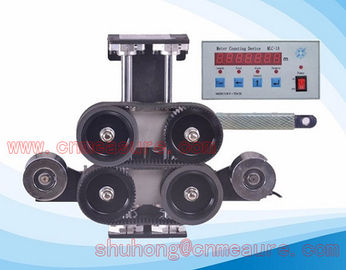

Photo 4: CCDD-60L (without Support / Stand )
Technical parameters:
The model CCDD-30L is used for measuring the length of cable ( external diameter between 1mm - 30mm ).
The model CCDD-60L is used for measuring the length of cable ( external diameter between 1mm - 50mm ).
The model CCDD-150L is used for measuring the length of cable ( external diameter between 3mm - 150mm ).
Specifications
| Model | CCDD-30L | CCDD-60L | CCDD-150L |
| Measuring Range | 3-30mm | 3-50mm | 3-150mm |
| Max Counting Length | 9999999 | 999999 | 999999 |
| Max Total Length | 99999.99 | 99999.99 | 99999.99 |
| Accuracy | +/- 0.1% | +/- 0.1% | +/- 0.1% |
| Dimension | 410x180x1200mm | 430x225x1200mm | 490x370x590mm |
| Total Net Weight | 17KG | 22KG | 55KG |
| Max Measuring Speed | 400 m/min | 400 m/min | 400 m/min |
| Relay Output | 2 | 2 | 2 |
| Alarm Output | Yes | Yes | Yes |
| Display digits | 7 digit | 7 digit | 7 digit |
| Length Measuring Unit | Meter | Meter | Meter |
| Calibration | Yes | Yes | Yes |
| Decimal Point Shift | Yes | Yes | Yes |
| Length Preset | Yes | Yes | Yes |
| Ahead of Preset Output | Yes | Yes | Yes |
| Control Preset | Yes | Yes | Yes |
| Emergent Data Protection | Yes | Yes | Yes |
| Two-Direction Counting | Yes | Yes | Yes |
| Ft Measuring Unit | Option | Option | Option |
| RS485 | Option | Option | Option |
| Power Consumption | <10W | <10W | <10W |
| Voltage |
220V 50/60HZ |
220V 50/60HZ |
220V 50/60HZ |
