| Place of Origin: | China Zhengzhou |
| Brand Name: | Mercury |
| Model Number: | CCDD-30L CCDD-60L CCDD-150L |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD 850 - 980 PCS |
| Packaging Details: | Carton 63cm*33cm*33cm |
| Delivery Time: | Within 2 days |
| Payment Terms: | T/T. Paypal |
| Supply Ability: | 2000 PCS per month |
| Color: | Black |
|---|

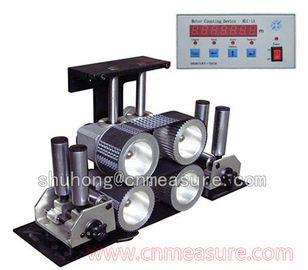

Wire Cable Length Measuring Device. Length measurement, Wire Cable length meter counter CCDD-30L CCDD-60L
Technical parameters:
Operating voltage: ~ 220V plus/minus 15% 50 - 60Hz
Power consumption: <10W
Operating temperature: -10 ~ 40 Degrees Celsius
The model CCDD-30L is used for measuring the length of cable ( external diameter between 1mm -30mm )
The model CCDD-60L is used for measuring the length of cable ( external diameter between 1mm -50mm )
Specifications

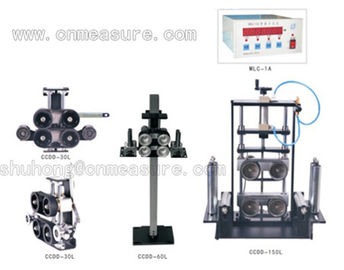

| Model | CCDD-30L | CCDD-60L | CCDD-150L |
| Measuring Range | 3-30mm | 3-50mm | 3-150mm |
| Max Counting Length | 9999999 | 999999 | 999999 |
| Max Total Length | 99999.99 | 99999.99 | 99999.99 |
| Accuracy | +/- 0.1% | +/- 0.1% | +/- 0.1% |
| Dimension | 410x180x1200mm | 430x225x1200mm | 490x370x590mm |
| Total Net Weight | 17KG | 22KG | 55KG |
| Max Measuring Speed | 400 m/min | 400 m/min | 400 m/min |
| Relay Output | 2 | 2 | 2 |
| Alarm Output | Yes | Yes | Yes |
| Display digits | 7 digit | 7 digit | 7 digit |
| Length Measuring Unit | Meter | Meter | Meter |
| Calibration | Yes | Yes | Yes |
| Decimal Point Shift | Yes | Yes | Yes |
| Length Preset | Yes | Yes | Yes |
| Ahead of Preset Output | Yes | Yes | Yes |
| Control Preset | Yes | Yes | Yes |
| Emergent Data Protection | Yes | Yes | Yes |
| Two-Direction Counting | Yes | Yes | Yes |
| Ft Measuring Unit | Option | Option | Option |
| RS485 | Option | Option | Option |
| Power Consumption | <10W | <10W | <10W |
| Voltage |
220V 50/60HZ |
220V 50/60HZ |
220V 50/60HZ |
Accuracy: 0.1%
External dimensions: 350mm * 150mm * 1500mm
Stand adjust height : 200mm-1450mm

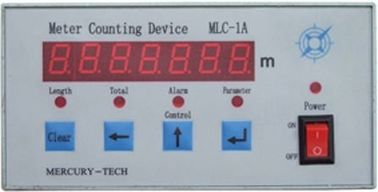

Electronic Counter
Maximum count: 10Km
Measurable length: 0-99999.99m
Cumulative length: 0-9999999m
Calibrate measuring precision.
Protection data when Power Down.
Pre-setting the length.
Pre-setting alarm length.
External dimensions: 160mm * 80mm * 170mm
Installation hole size: 152mm * 76mm
Package Size: 38 cm * 34 cm * 20 cm ( Measuring unit volume )
7 cm * 8 cm * 145 cm (Support Volume )
Packaging Weight: 26KG
